The future of speed control is here

Mtroniks TT-60

tt60
  • £55.00
  • Easy one touch set up
  • Programmable direction
  • 4.8 to 9.6V  Operation
  • 11 Turn motor limit

RC car speed controller. Full description

You may also consider

  • Description
  • Delivery and Returns
Description

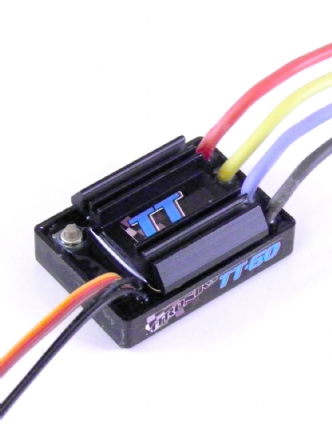

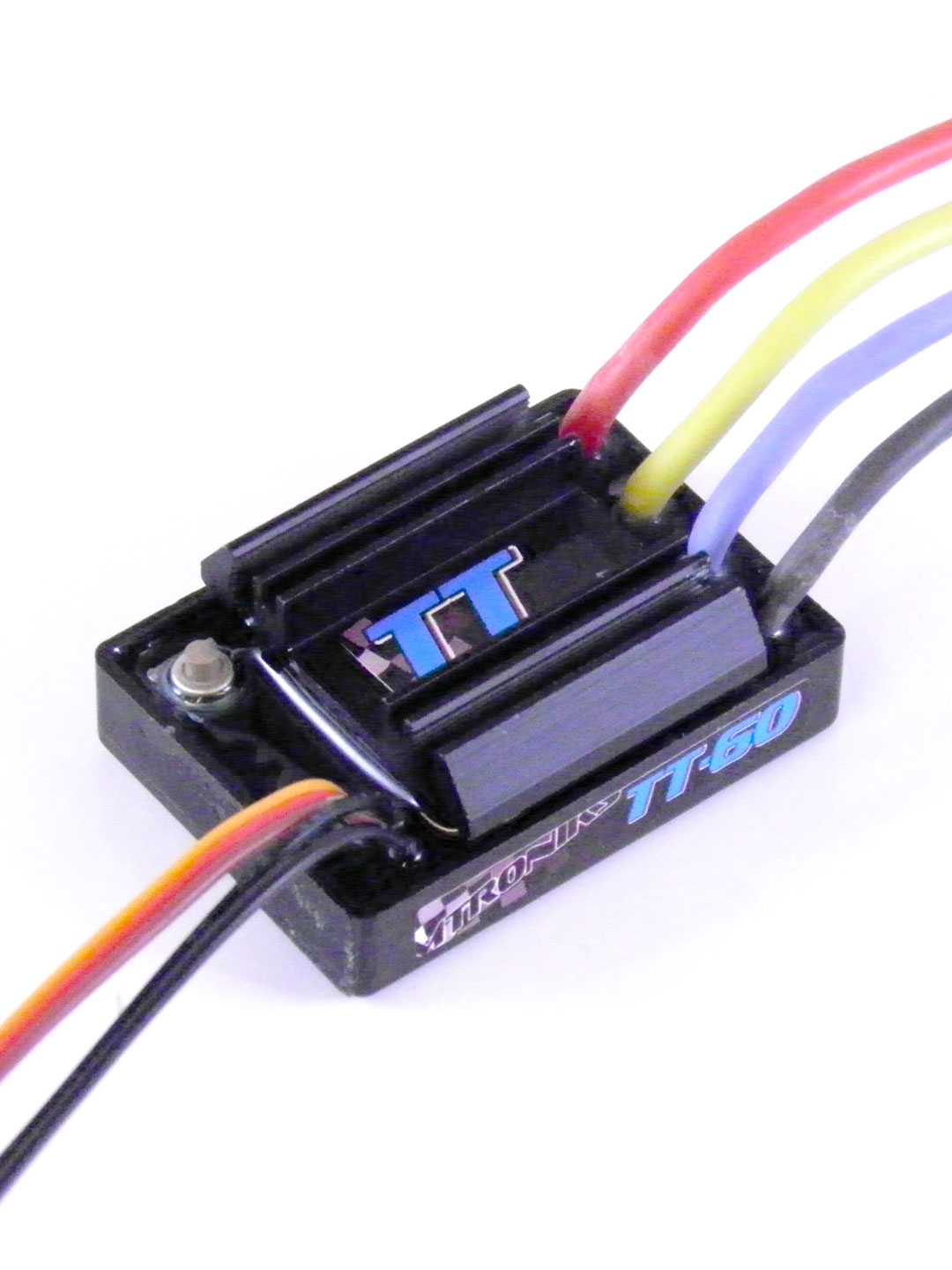

The TT-60 is a brushed speed control designed specifically for use in RC model cars with blue LED running lights.

It has a 11 turn motor limit, what this means is that you can use any, DC brushed 540 motor, or smaller, as long as the number of turns on that motor are 11 or more. For example, a 10 turn motor is not appropriate but a 35 turn motor would be.

The TT range of speed controllers feature our new TRUE TORQUE system, this is a new way of accurately controlling motor current, it virtually eliminates motor saturation and due to the amazing power of the latest miniature processors we have, at last, been able to incorporate this into our new range of speed controllers.
The main advantage of TRUE TORQUE is the way in which motors and batteries are protected from dangerous currents, even in a full power motor stall situation. But as well as this, motor life is extended due to lower brush wear, particularly in high power models.
These new controllers also have Li-Po battery support and three driver profile modes, so the controller can be used as a forwards and brake only, forwards and instant reverse or forwards, brake then reverse!

The TT-60 is sure to be a popular choice from the new line of TT car speed controls, this is due mainly to all the features that are included, such as a built in failsafe, 100% proportional, fine throttle control in both directions, and motor stall protection, which is a feature that cannot be overlooked when getting stuck in the long grass or undergrowth is a definate possibility. Not to forget that the Viper range of speed controllers are all completely 100% waterproof and designd to work in the wet so even the traditional UK weather doesn't have to stop you having fun!

Downloads

Technical Specification

Product Type Speed Controller Only
Direction Programmable
Motor Type Brushed
Motor Limit 11T
Battery Type NiCAD/NiMH/Lipo
Lipo safe Yes
Operating Voltage Maximum 9.6 Volts
Set up Digital 1-touch
BEC 1.5A
Motor Short circuit protection Yes
Thermal overload protection Yes
Failsafe Built in
Dimensions L42.0mm x W30.0mm x H16.0mm
Weight 45.0g
