Mtroniks M600

m600
  • £10.99
  • Brushed design
  • 600 can size
  • 6 to 12V
  • 40 Watts

Brushed model boat motor. Full description

You may also consider

  • Description
  • Delivery and Returns
Description

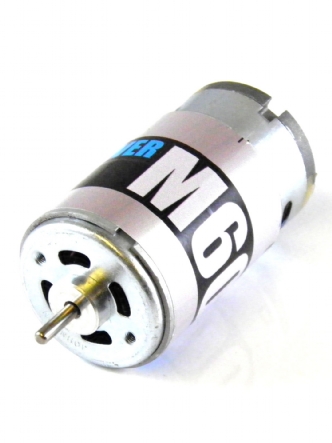

The Mtroniks 'Power M600' brushed motor is currently the largest motor in the new line of brushed motors for model boats from Mtroniks.

The M600 is a 600 can sized motor, sometimes referred to as 550 size, it is ideal for use in medium scale model boats running between 6 and 12V.

The M600 comes supplied with suppression capacitors to help reduce any nasty glitches or interference effects in your model and has standard pitch mounting holes of 25.0mm, M3. It also has a torque sleeve fitted which increrases torque, this can be removed to reduce torque if necessary.

Running at 12V, at maximum efficiency, the M600 will run at around 15000RPM and pull around 5.19Amps. Start up current, depending on prop size, would be around 21Amps.

Downloads

Technical Specification

Motor Type Brushed
Motor size 600
RPM@12.0V 15000
Power 40W
Stall current @12V 27.0A
Shaft diameter 3.17mm
Length 65.0mm
Diameter 35.8mm
Weight 270.0g
