The future of speed control is here

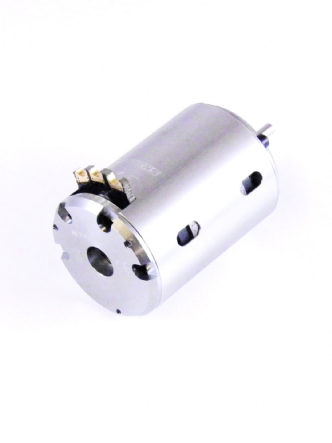

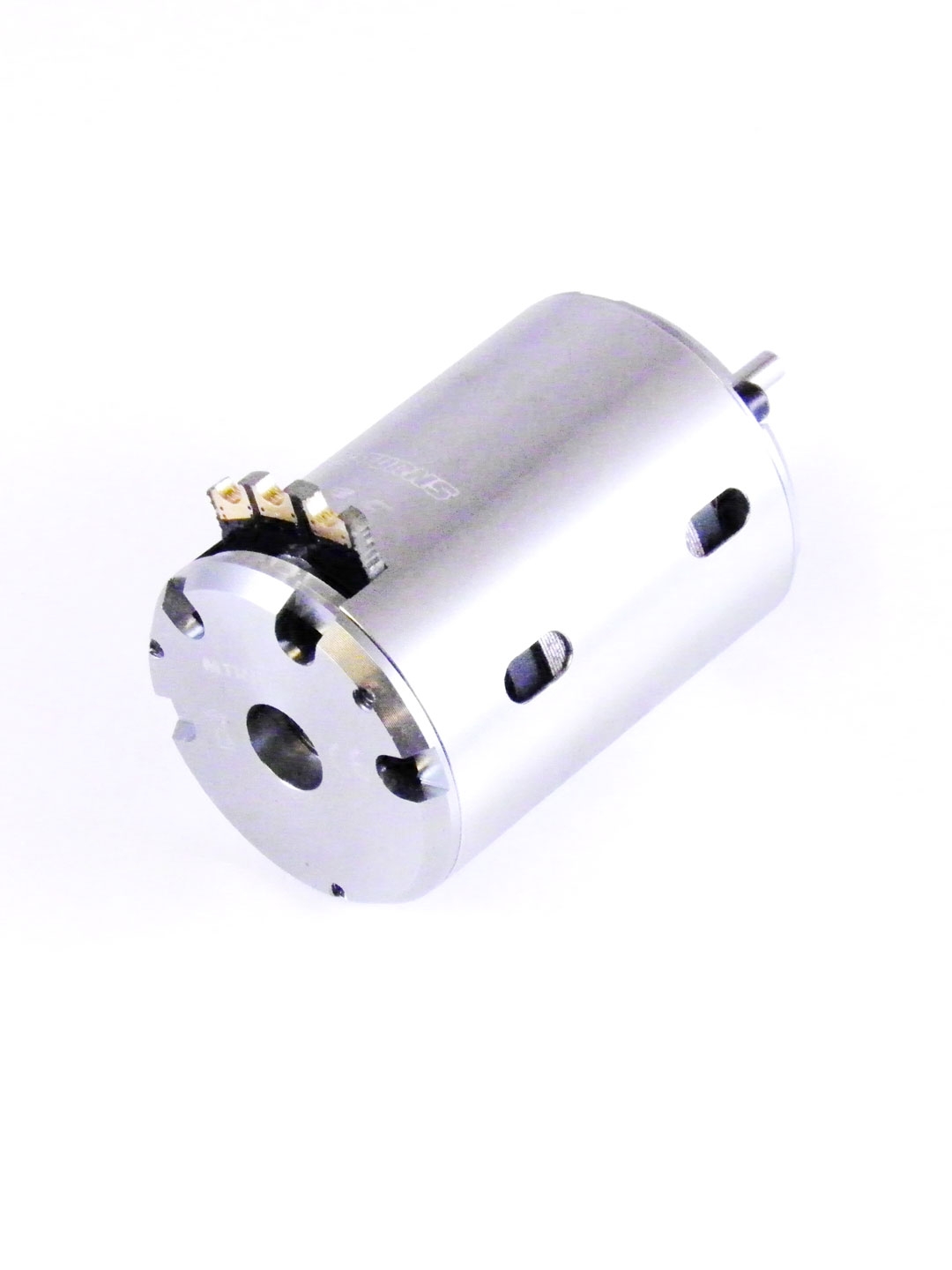

Mtroniks MX1S 10.5T

105s
  • £65.99
  • Sensorless design
  • 540 case size
  • 3.7 to 14.8V  Operation
  • 10.5 Turns

Sensorless brushless motor. Full description

You may also consider

  • Description
  • Delivery and Returns
Description

The MX1S sensorless brushless motor is the result of 12 months of design work and testing. The MX1S has been designed to be compatible with any manufacturers sensorless speed controller. The MX1S uses the industries best manufacturing processes to give the most precise throttle response from a sensorless motor. The high powered sintered magnets help to give the motor incredible power and response. With this motor, Mtroniks offers a very efficient, powerful, fixed timing motor for any level of hobbyist, from beginner to expert.

An incredible power to efficiency ratio has been achieved due to the design of the MX1S motor, meaning that no matter whether your interest is with RC touring cars, buggys/ truggys, monster trucks or short course trucks, the MX1S brushless motor will offer amazing power, feel and run time to help increase the enjoyment of your hobby.

Features like precision ball bearings, rebuildable, heat dispersing aluminium casing and high power sintered magnets make the MX1S motor a serious contender for any RC car application.

The MX1S motor comes with heavy gold plated copper, multilayer PCB solder tabs for lowest resistance and easy wire connection.

This MX1S motor has a 10.5T rating.

Technical Specification

Motor Type Brushless - Sensorless
Motor size 540
Number of turns 10.5
Winding Star
KV Rating 3300
RPM@7.4V 25000
Efficiency 93%
Power 350W
Magnet material Sintered
Shaft diameter 3.17mm
Length 52.5mm
Diameter 35.8mm
Weight 160.0g
