The future of speed control is here

Mtroniks MX1S600

mx1s2100
  • £84.99
  • Sensorless design
  • 600case size
  • 7.2 to 14.8V  Operation
  • 1400kv

Sensorless brushless motor. Full description

  • Description
  • Delivery and Returns
Description

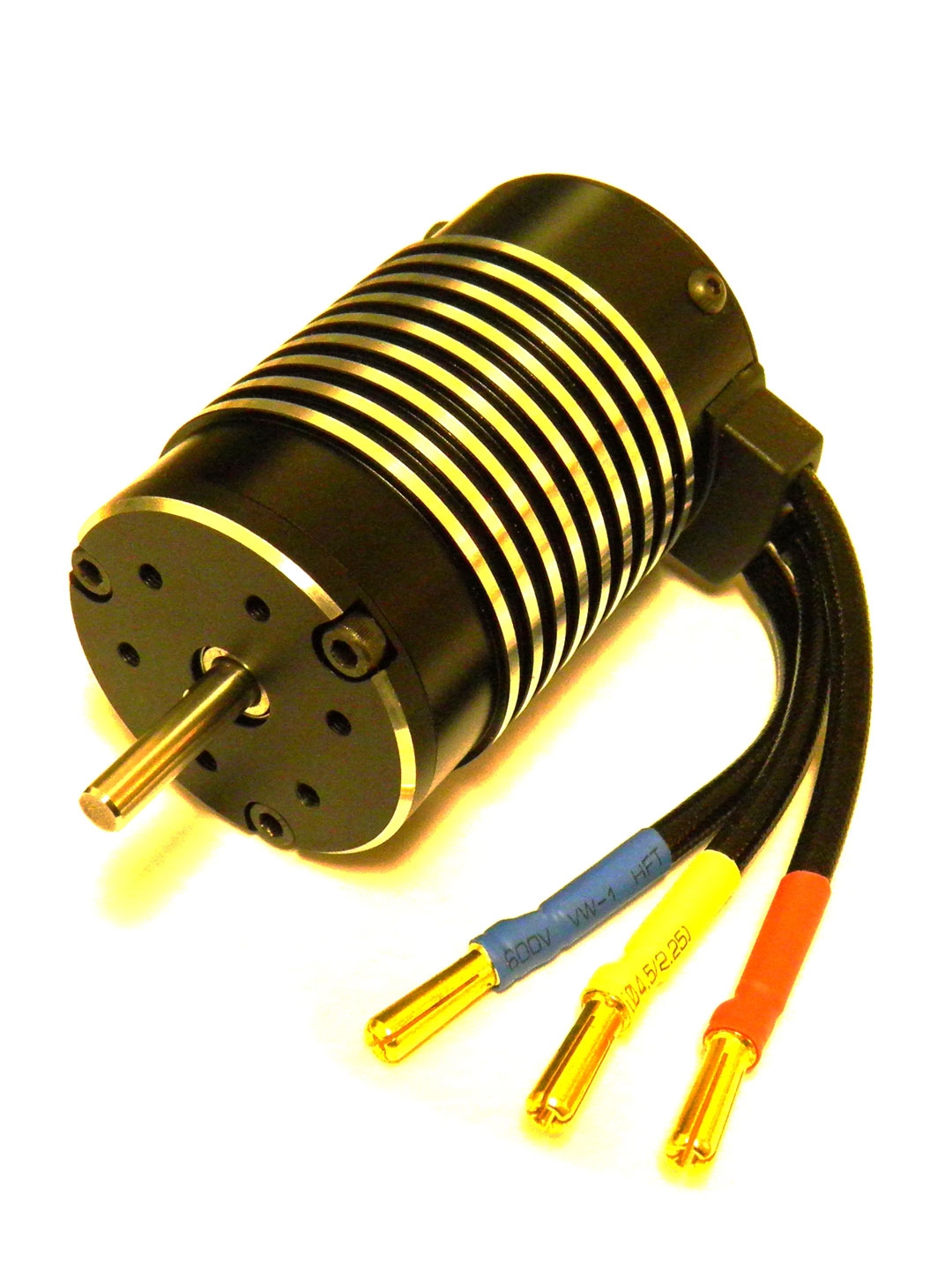

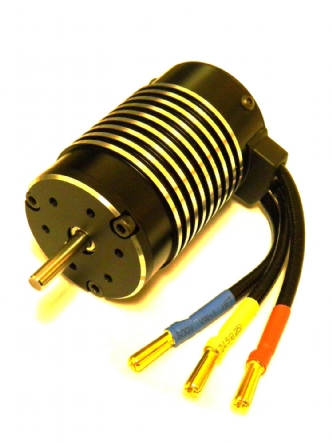

The MX1S600 sensorless brushless motor is the result of 12 months of design work and testing. The MX1S600 has been designed to be compatible with any manufacturers sensorless speed controller. The MX1S600 uses the industries best manufacturing processes to give the most precise throttle response from a sensorless motor, equally at home in either a 1/8 scale RC buggy or a large model boat.

The high powered sintered magnets help to give the motor incredible power and response. With this motor, Mtroniks offers a very efficient, powerful, fixed timing motor for any level of hobbyist, from beginner to expert.

An incredible power to efficiency ratio has been achieved due to the design of the MX1S600 motor, meaning that no matter whether your interest is with 1/8 RC buggys/ truggys, monster trucks or large model boats, the MX1S600 brushless motor will offer amazing power, feel and run time to help increase the enjoyment of your hobby.

Features like precision ball bearings, rebuildable, heat dispersing aluminium casing and high power sintered magnets make the MX1S600 motor a very attractive option.



The MX1S600 motor has a 1400kv rating.

Technical Specification

Motor Type Brushless - Sensorless
Motor size 600
KV Rating 1400
RPM@7.4V 10000
RPM@12.0V 17000
Efficiency 94%
Magnet material Sintered
Shaft diameter 5.0mm
