The future of speed control is here

Mtroniks MRLA Radio control adaptor

mrla
  • £104.99
  • Easy push button set up
  • Seamless radio control
  • No batteries needed

Radio control adaptor system for ride on locomotives. Full description

Product out of stock
  • Description
  • Delivery and Returns
Description

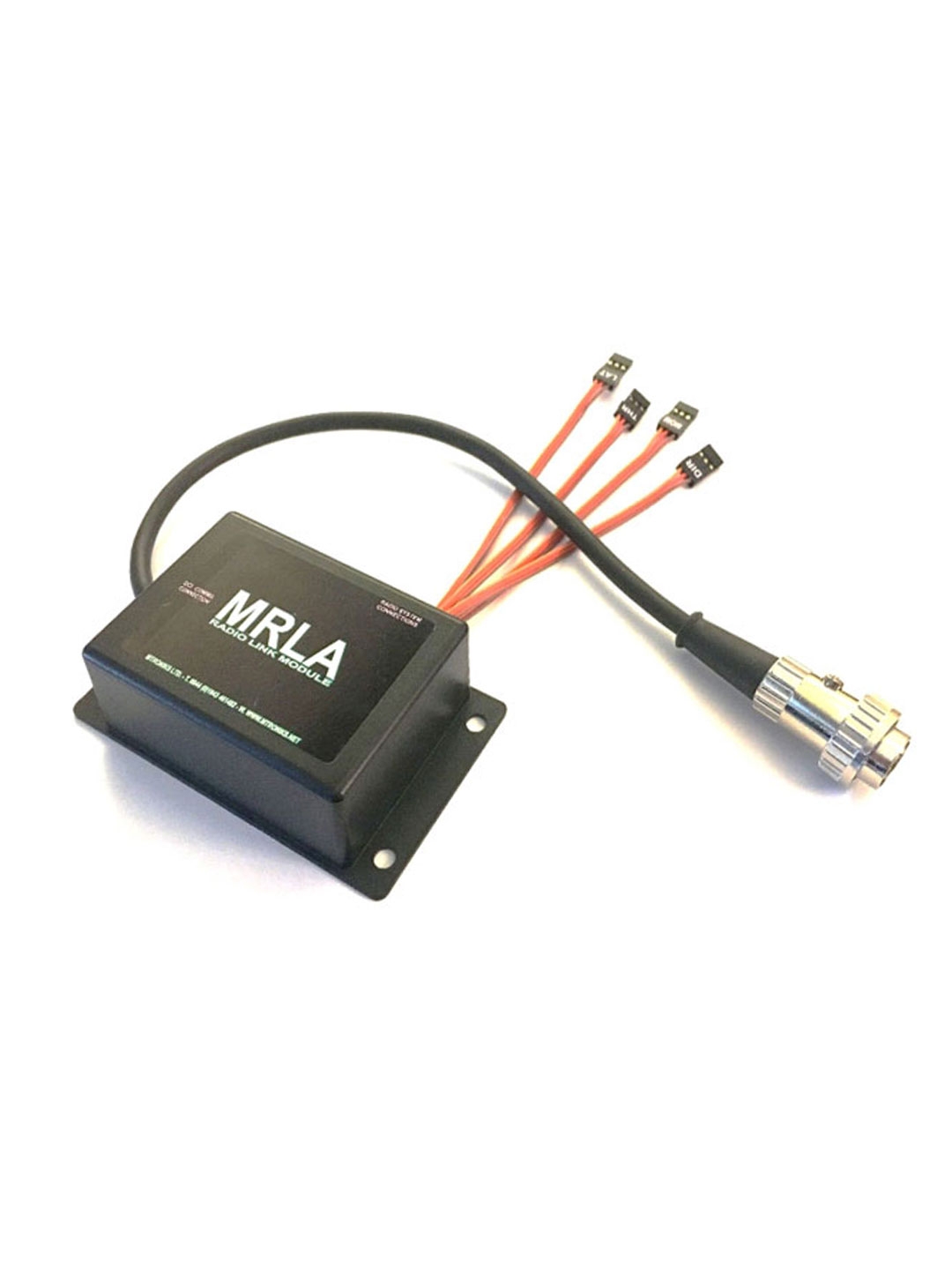

The MRLA has been designed to allow you to control your locomotive from a radio control system. Allowing you to stand at the side of the track and watch your locomotive travel round the track layout from one position.

The MRLA has one multi-way cable which connects to the Mtroniks ACI/DCI main power unit. This carries communication information between the power unit and the MRLA, also this cable supplies power from the main ADC/DCI power unit to the MRLA which is then passed on to the radio receiver. This power level is at 5V DC, suitable for all such pieces of radio equipment. It is important that this power source is not overloaded (e.g. by connecting servo devices to the radio receiver), this could damage the main ADC/DCI power unit.

It has four cables which connect to a radio receiver. The correct connection and polarity of Signal, Positive and Negative are essential; please refer to your radio receiver’s manual. Each of these cables is labelled, indicating its function: THR=throttle/brake control channel, DIR=direction control channel, LAT=latching auxiliary functions channel, MOM=momentary action auxiliary functions channel. Each receiver channel has a matching transmitter control channel. The user should choose transmitter channels for operation that he feels with comfortable with and connect the MRLA’s cabling to the appropriate receiver channels. It is essential that the user feels comfortable with, and has a good knowledge of, the control channels.

It has four LED indicators giving visibility of the MRLA’s main functions: Operation LED (doubling as Signal Tester LED), Battery Condition LED, Alert LED.

Downloads

Technical Specification

Product Type Digital
Set up Push button
Waterproof Yes
Dimensions L105.0mm x W71.0mm x H32.0mm
Weight 160.0g
