The future of speed control is here

Mtroniks G2Hydra15 System

HydraCombo
  • £65.99
  • Auto set up
  • Forwards and reverse
  • 6.0 to 12.0V  Operation
  • 15A motor limit

RC boat speed controller and motor system. Full description

You may also consider

  • Description
  • Delivery and Returns
Description

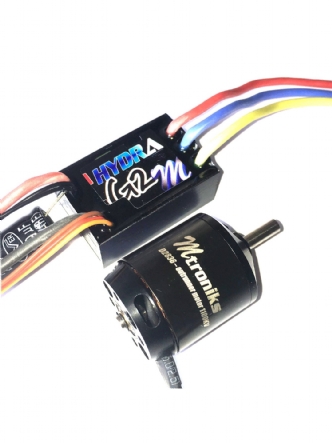

The Hydra15 system is a complete brushless system comprising of a speed controller and motor. It is designed specifically for use in scale RC boats. The controller and motor have been optimised to give the best possible performance in both forwards and reverse when used together.

The G2 controllers are primarily designed to make using brushless technology easy and fun! This system takes 'easy' one step further! The Hydra15 brushless controller has complete auto software installed, meaning that you don't even need to set it up! The controller has auto calibration and auto battery type detection straight out of the box. The fine slow speed control and acceleration are all pre-programmed to suit the included motor, taking all the complication out of the job. The controller comes with a sensorless 480 outrunner motor complete with fixings.

The brushless motor is rated at 1000kv, this equates to 1000revs/volt, so if you were running with a 12V battery, your expected shaft RPM, off load, would be around 12000, this would probably drop to around 9000 under load (in the water). The motor is built with an anodised heat efficient casing, precision ballraces, high temp magnets and gold plated motor wire connections. The 15A rating of the system would allow using a prop of around 30.0mm diameter.

Add all the above to the legendary 100% waterproof design of the speed controller and you get a brushless speed controller system suitable for use in any weather that is suitable for any level of hobbyist, from beginner to expert. The Hydra systems are suitable for use on fully charged 12V Lead Acid batteries!

Technical Specification

Product Type Speed Controller & Motor
Motor Type Brushless - Sensorless
Current Limit 15 Amps
Direction Forwards/Reverse
Battery Type NiCAD/NiMH/Lead Acid/LiPo
Lipo safe Yes
Operating Voltage Maximum 12.0 Volts
Set up Auto 'Plug n Play'
BEC 1.5A
Motor Short circuit protection Yes
Thermal overload protection Yes
Failsafe Built in
Dimensions L42.0mm x W27.0mm x H16.0mm
Weight 95.0g inc motor
