The future of speed control is here

Mtroniks DCi250-12

dci25012
  • £379.99
  • Handset control
  • Forwards and reverse
  • 12.0V  Operation
  • 250A Brushed motor limit

Loco speed controller. Full description

You may also consider

  • Description
  • Delivery and Returns
Description

For over 20 years Mtroniks have been at the forefront of electronic speed control design and manufacture for the hobby industry.

Our products are designed and manufactured entirely inhouse in the UK. The DCI range of controllers has been developed over the last 4 years. The extensive research and design program looked at every aspect of the problems associated with the speed control of large scale models.

We hope you will find the DCI range of controllers is refreshingly different in many ways, it's not designed down to a price. We developed a strong core of electronics which during rigorous testing, has proven to be 'well on top of the job'

The use of a large and powerful computer core has allowed us to incorporate features and protection measures not usually found on these types of controllers. These particular controllers are aimed at large locomotives of 3 1/2" gauge and up and other large DC brushed motor applications. This is where we have tested extensively, actually in real applications!

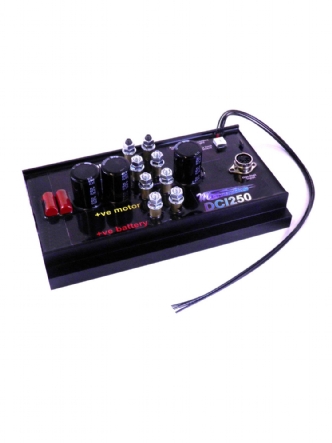

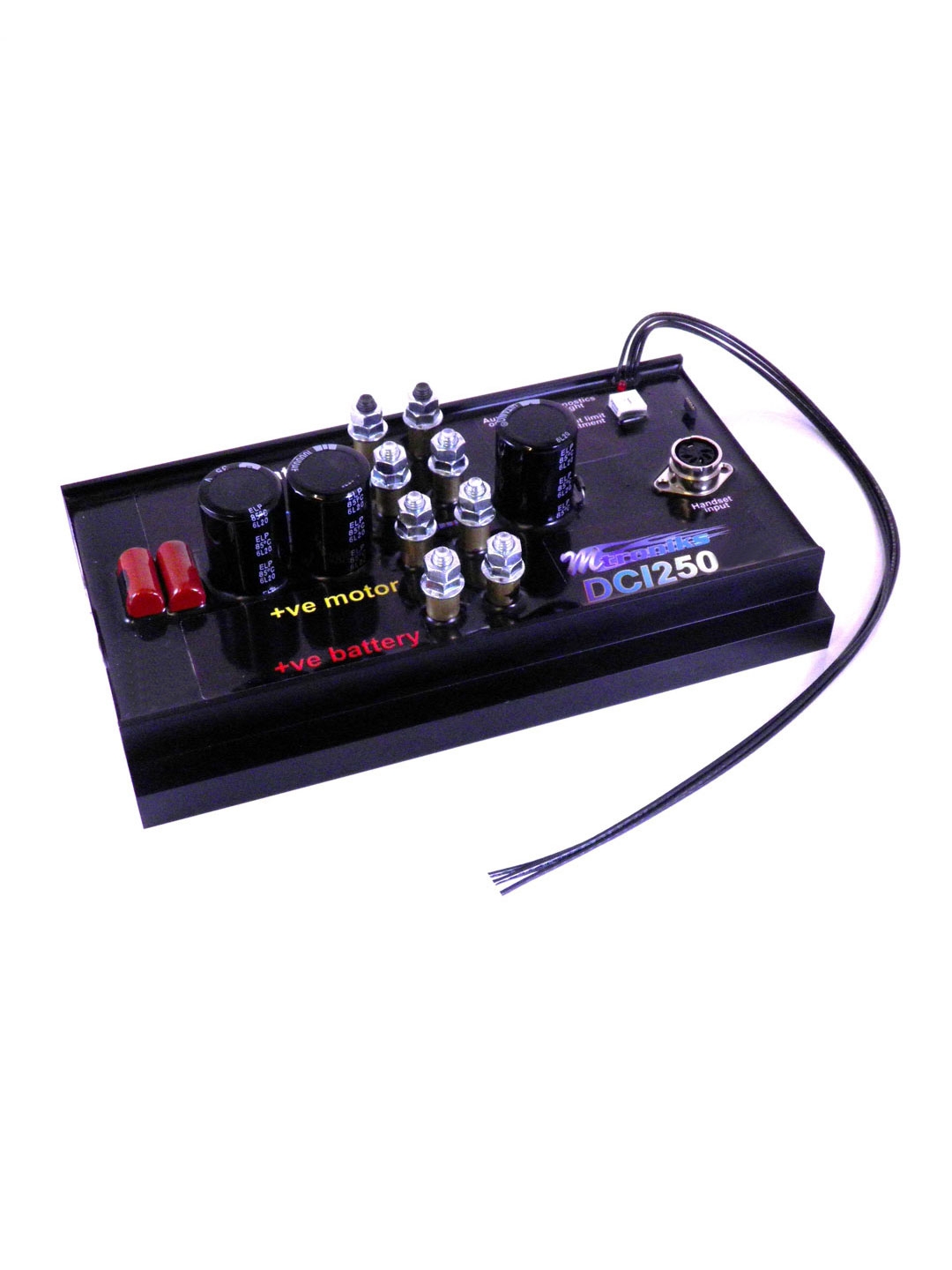

The DCI250-12 is the 12V 250Amp version of the controller and is ideally suited to use with single or dual 12V DC large brushed motors. It comes complete with a comfortable and easy to use handset that gives the user complete control over the motor and other auxilliary features. The DCi controller is 100% waterproof and designd to last in arduous conditions.

The DCi controller is a special order item. If you require next day delivery please phone in advance of making your order on-line.

Also available separately without the handset, please call for details

Downloads

Technical Specification

Product Type Speed Controller Only
Motor Type Brushed
Current Limit 250 Amps
Direction Forwards/Reverse
Battery Type NiCAD/NiMH/Lead Acid
Lipo safe No
Operating Voltage Maximum 12.0 Volts
Set up Handset control
Motor Short circuit protection Yes
Thermal overload protection Yes
Failsafe Built in
Dimensions L220.0mm x W132.0mm x H65.0mm
Weight 1700.0g
