The future of speed control is here

Mtroniks M400

m400
  • £6.99
  • Brushed design
  • 400 can size
  • 6 to 12V
  • 20 Watts

Brushed model boat motor. Full description

  • Description
  • Delivery and Returns
Description

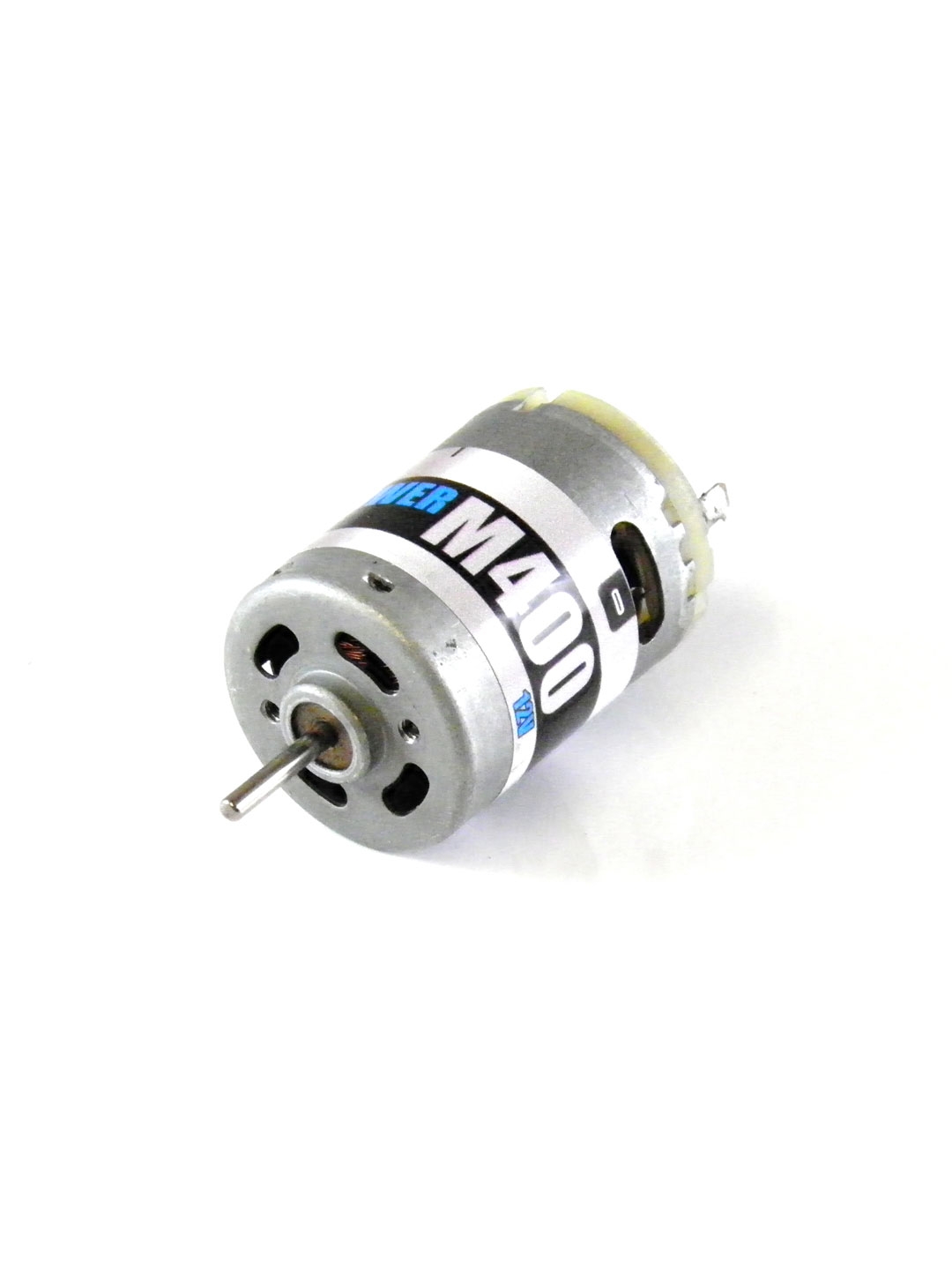

The Mtroniks 'Power M400' brushed motor is the smallest in the new line of brushed motors for model boats from Mtroniks.

The M400 is a 400 can sized motor, sometimes referred to as 370 or 380 size, it is ideal for use in small scale model boats running between 6 and 12V.

The M400 has standard pitch mounting holes of 16.0mm, M2.5.

Running at 12V, at maximum efficiency, the M400 will run at around 20000RPM and pull around 4Amps. Start up current, depending on prop size, would be around 10Amps.

Downloads

Technical Specification

Motor Type Brushed
Motor size 400
RPM@12.0V 20000
Power 20W
Stall current @12V 27.0A
Shaft diameter 2.25mm
Length 37.5mm
Diameter 27.5mm
Weight 65.0g
