The future of speed control is here

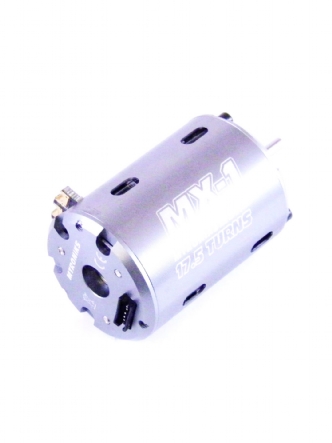

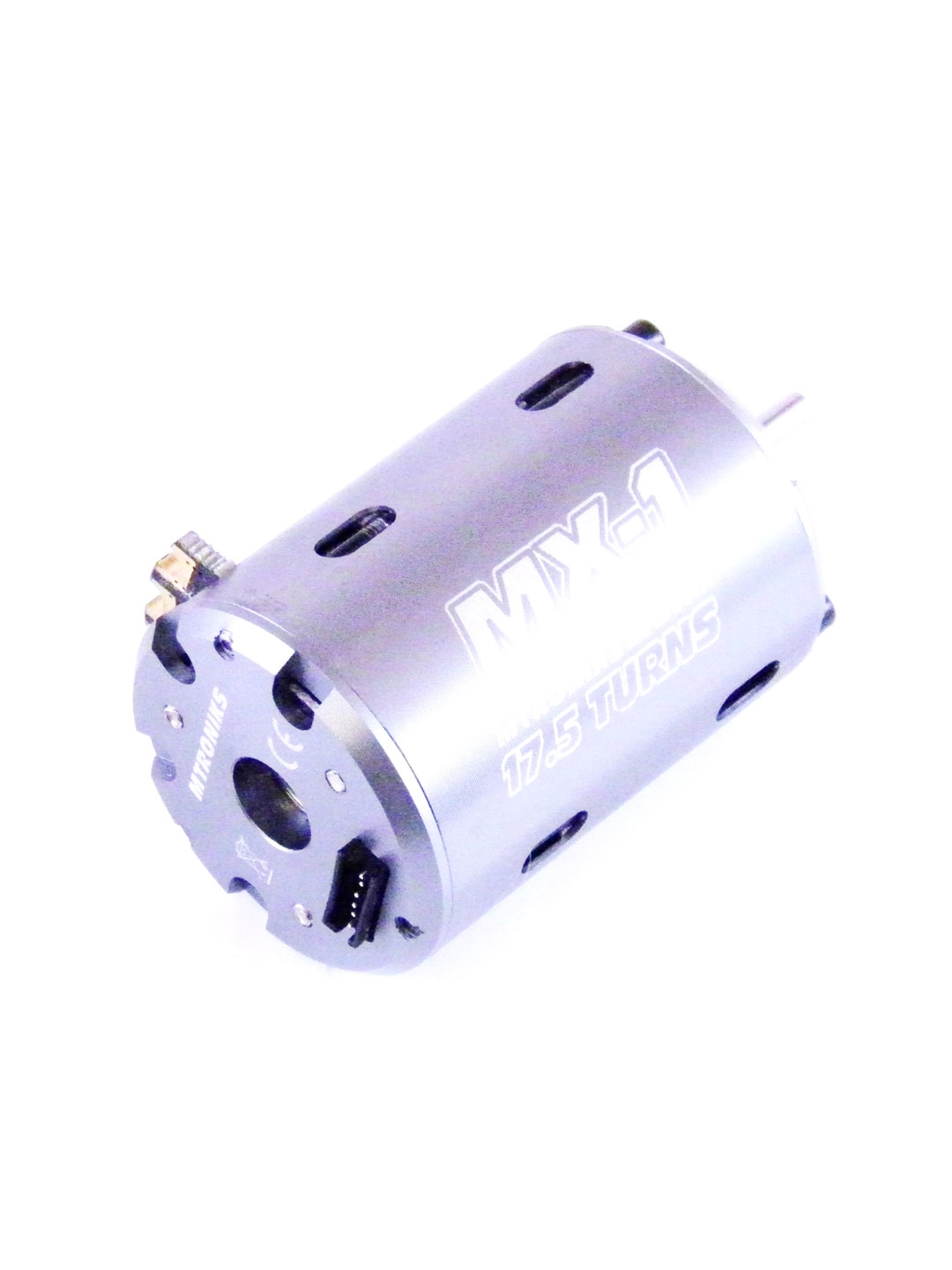

Mtroniks MX1 17.5T

  • £65.99
  • Sensored design
  • 540 case size
  • 3.7 to 14.8V  Operation
  • 17.5 Turns

Sensored brushless motor. Full description

You may also consider

  • Description
  • Delivery and Returns

The MX1 sensored brushless motor series is the result of 12 months of design work and testing. The series has been designed to be compatible with any manufacturers sensored or sensorless speed controller. The MX1 uses the industries best sensors to give the most precise throttle response. The high powered sintered magnets help to give the motor incredible power and response. With this motor, Mtroniks offers a very efficient, powerful, fixed timing motor for any level of hobbyist, from beginner to expert.

An incredible power to efficiency ratio has been achieved due to the design of the MX1 motors, meaning that no matter whether your interest is with RC touring cars, buggys/ truggys, monster trucks or short course trucks, the MX1 brushless motors will offer amazing power, feel and run time to help increase the enjoyment of your hobby.

Features like precision ball bearings, rebuildable, heat dispersing aluminium casing, high precision sensors and high power sintered magnets make the MX1 motors a serious contender for any RC car application.

All MX1 motors come with heavy gold plated copper, multilayer PCB solder tabs for lowest resistance, easy wire connection and are supplied with a high quality sensor cable.

This MX1 motor has a 17.5T rating, suitable for BRCA sanctioned race meetings.

Technical Specification

Motor Type Brushless - Sensored
Motor size 540
Number of turns 17.5
Winding Star
KV Rating 1900
RPM@7.4V 14000
Efficiency 94%
Power 250W
Magnet material Sintered
Shaft diameter 3.17mm
Length 52.5mm
Diameter 35.8mm
Weight 160.0g
