Mtroniks DC-12V

dc12v
  • £36.99
  • Brushed design
  • 5" Gauge Models
  • 12 to 24V
  • 144 Watts

Brushed Traction motor. Full description

  • Description
  • Delivery and Returns
Description

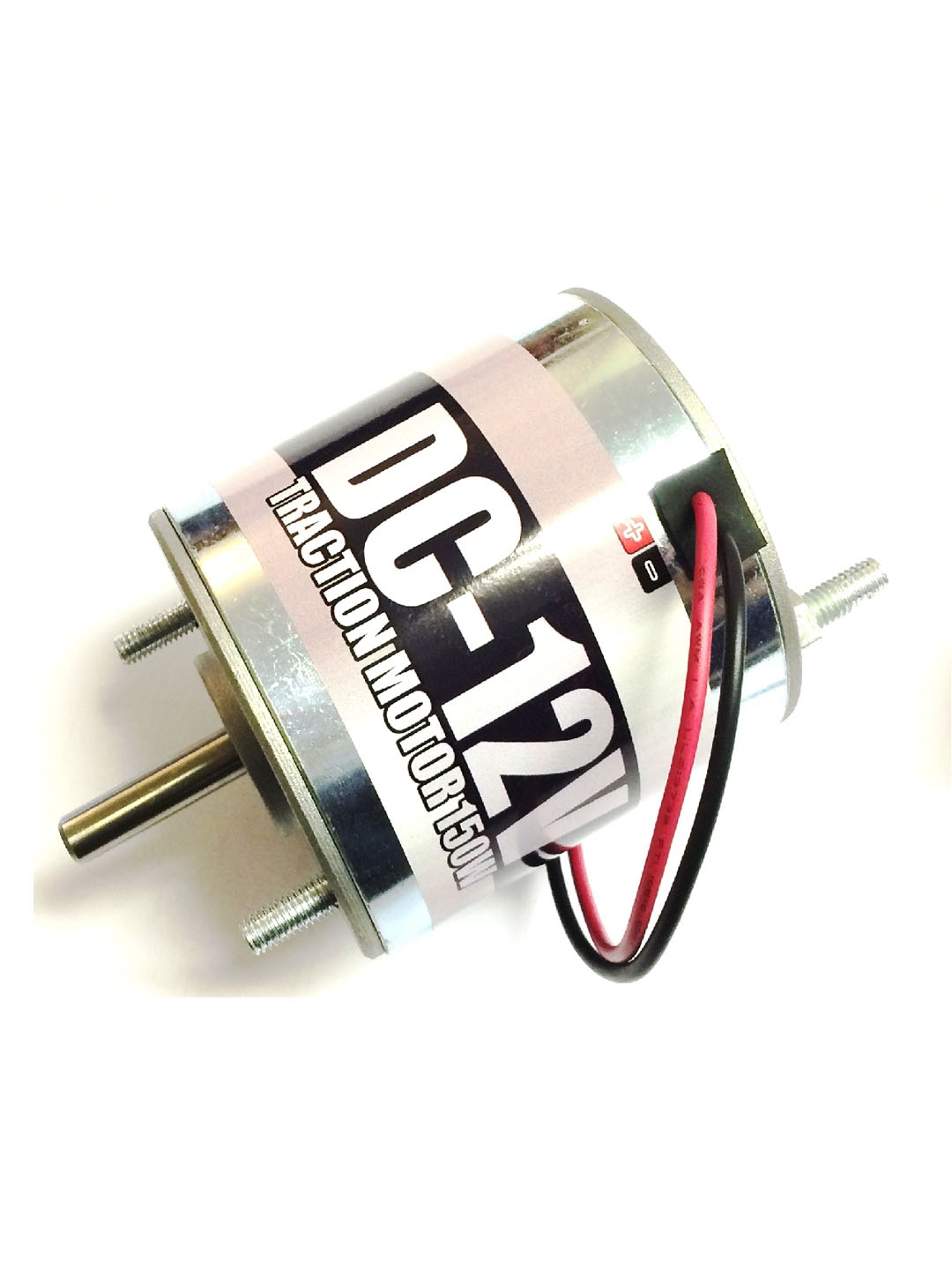

The Mtroniks 'DC-12V' brushed motor is currently the largest motor in the new line of brushed motors from Mtroniks.

The DC-12V is a large can sized motor, see datasheet for details, it is ideal for use in single or multiple motor 5" gauge locos running between 12 and 24V.

The DC-12V is built using high temperature windings and a large heavy duty commutator. It has standard pitch mounting holes of 62.0mm with M6 fixing holes.

Running at 12V, at maximum efficiency, the DC-12V will run at around 2400RPM and pull around 12Amps.

Downloads

Technical Specification

Motor Type Brushed
RPM@12.0V 2400
Power 144W
Shaft diameter 8.0mm
Length 82.5mm
Diameter 77.5mm
Weight 1000.0g
